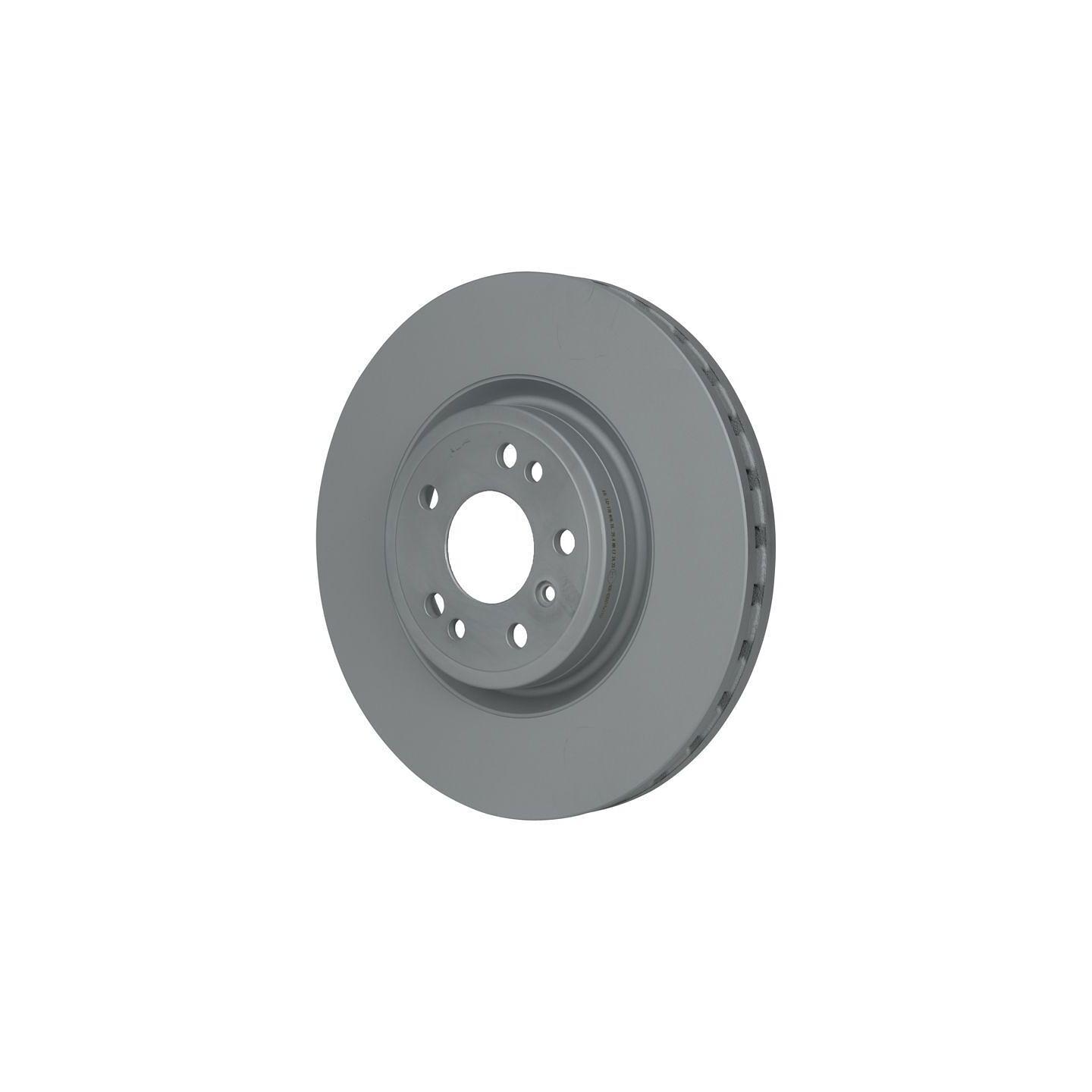

ATE Brake Disc Set (2 pcs) 24.0132-0178.1
Part Number: 24.0132-0178.1
$292.00 inc GST
In stock
Select your vehicle to confirm fitment

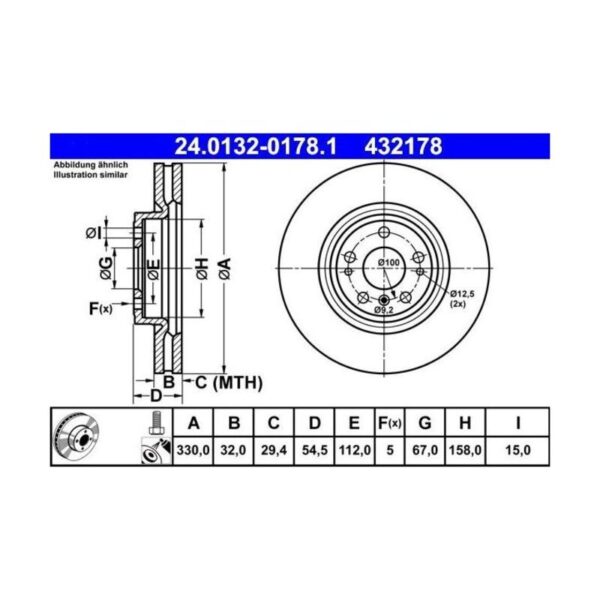

Specifications
| Outer diameter [mm] | 330.0 |
|---|---|
| Brake Disc Thickness [mm] | 32.0 |
| Minimum thickness [mm] | 29.4 |
| Brake Disc Type | Vented |
| Machining | Alloyed / High-carbon |
| Surface | Coated |
| Number of Holes | 5 |
| Bolt Hole Circle Ø [mm] | 112.0 |
| Height [mm] | 54.5 |
| Centering Diameter [mm] | 67.0 |
| Inner diameter [mm] | 158.0 |
| Bore Ø [mm] | 15.0 |
| Supplementary Article/Info 2 | with bolts/screws |
| Test Mark | E1 90R-02C0115/1107 |
OE Part Numbers
| Mercedes-Benz | A 166 421 06 12 |
|---|---|
| Mercedes-Benz | A1664210612 |
| Mercedes-Benz | 166 421 06 12 |
| Mercedes-Benz | 1664210612 |
| Mercedes-Benz | A 166 421 13 00 |
| Mercedes-Benz | A1664211300 |
| Mercedes-Benz | 166 421 13 00 |
| Mercedes-Benz | 1664211300 |
Description
Upgrade your vehicle’s stopping power with the ATE Brake Disc Set (2 pcs) – Part Number: 24.0132-0178.1. Designed for high-performance, these 330mm outer diameter brake discs boast a robust 32mm thickness, reducing to a minimum 29.4mm for prolonged, dependable use. Engineered with a vented design, these discs ensure efficient heat dissipation under extreme braking conditions. The high-carbon, alloyed machining offers exceptional strength and stability, while the coated surface provides superior resistance to corrosion. Featuring a precise 5-hole configuration with a 112mm bolt hole circle diameter, these discs guarantee an exact fit.
Compatible Vehicles
GLE (W166)
| Vehicle | Build Date | Engine | Engine Model | Notes |
|---|---|---|---|---|
| 250 d 4-matic (166.004), 300 d 4-matic (166.004) | 04-2015 to 10-2018 | 2.1L Diesel (150 kw) | OM 651.960 | |
| 350 d 4-matic (166.024) | 04-2015 to 10-2018 | 3.0L Diesel (190 kw) | OM 642.826 | |
| 400 4-matic (166.056) | 04-2015 to 10-2018 | 3.0L Petrol Engine (245 kw) | M 276.821, M 276.825 |
GLE Coupe (C292)
| Vehicle | Build Date | Engine | Engine Model | Notes |
|---|---|---|---|---|
| 350 d 4-matic (292.323, 292.324) | 03-2015 to 10-2019 | 3.0L Diesel (190 kw) | OM 642.824, OM 642.826 |
M-CLASS (W166)
| Vehicle | Build Date | Engine | Engine Model | Notes |
|---|---|---|---|---|
| ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) | 06-2011 to 12-2015 | 2.1L Diesel (150 kw) | OM 651.960 | |
| ML 350 4-matic (166.057) | 06-2011 to 12-2015 | 3.5L Petrol Engine (225 kw) | M 276.955 | |
| ML 350 BlueTEC 4-matic (166.024, 166.023) | 06-2011 to 02-2015 | 3.0L Diesel (190 kw) | OM 642.826, OM 642.864 | |
| ML 400 4-matic (166.056) | 08-2013 to 02-2015 | 3.0L Petrol Engine (245 kw) | M 276.821 |
